Newest 4G GPS Tracker with Camera/ Free Software

Product Categories
GZ TOPSHINE TECHNOLOGY LIMITED
Contact Now

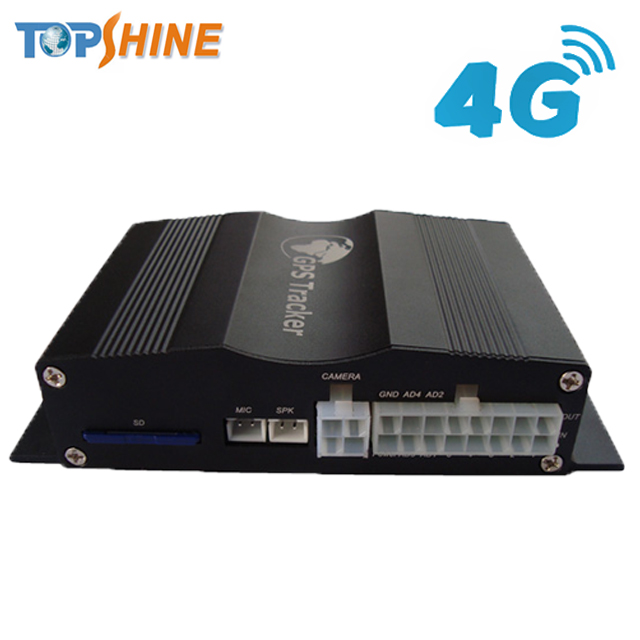

Newest 4G GPS Tracker with Camera/ Free Software

Place of Origin : Guangdong, China

Brand Name : Topshine/OEM/ODM

Model Number : 4G-VT1000

Certification : ce, FCC, RoHS

Packaging Details : Neutral color box(14.5*14*4.5cm) or Neutral white box(15*16*4.5cm)

Supply Ability : 10000 Unit/Units per Month

Price : $96.00/Pieces 1-99 Pieces

Type : GPS Tracker

Placement : PORTABLE

OS : Wince 6

Screen Type : No Screen

Resolution : 1280*720

Function : Other, Remote Control, Distance Warning, Speed Warning, Support OTA, Support OBD II, Two way communications, Harsh Braking/Acceleration Alarm, Real time positioning, Geo Fence, Power cut alarm, Driver ID identification, Fleet management, Support idle alarm

Combination : Other

Connection : 3G/4G Sim Card

Warranty : 2 years

Use : Automotive

Frequency : 850/900/1800/1900MHz Quad Band

GPS Chip : Latest GPS Sirf-Star III Chipset

Is_Customized : Yes

Network : 4G

Logger : 4MB

Voltage(-VDC) : 12-90

Battery : 850mAh

Engine Cut-off : Support

Fleet Management : Support

Camera : Supprot

Port : GuangZhou

Contact Now

Products Description
Newest 4G GPS tracker with camera/ Free Software
VT1000-4GI is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Technical Parameters:

Power Supply
+12V - +90V / 1.5A
Backup Battery
850mAh
Dimension
130mm x 68mm x 30mm
Installation Dimension
130mm x 68mm x 30mm
Weight
197g
Operating temperature
-20° to 75° C
Humidity
5% to 95% Non-condensing
Frequency
GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Module
latest GPS SIRF-Star III chipset
GPS Sensitivity
-158Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
20 channel all-in-view tracking
Position Accuracy
10 meters, 2D RMS
Velocity Accuracy
0.1 m/s
Time Accuracy
1 us synchronized to GPS time
Default datum
WGS-84
Reacquisition
0.1 sec., average
Hot start
1 sec., average
Warm start
38 sec., average
Cold start
42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
LED
2 LED lights to show GPS/GSM working status.
Flash Memory
4MB
Interface
5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.
Details Images
Newest 4G GPS Tracker with Camera/ Free Software

Functions of VT1000-4G:

* Use 4G mobile network
* Support limit the vehicle speed within the controllable range
* Support OTA (update to new firmware by SMS command)
* Support smart phone RFID for driver identification / anti-theft
* Support Active RFID & passive RFID for anti- theft and driver(student) ID identification function
* Have 4 analog inputs, max support 4 fuel sensor for petrol level monitor,support fuel stolen alarm
* Support max 4 cameras, take photo by time interval
* Support crash/impact sensor for accident alarm
* Support temperature sensor / speed limiter / door sensor etc.
* Support SD card data logger
* Support OBD2 connector to read DTC from ECU car computer
* Two way communication, listen in voice and speak
* Support harsh braking / acceleration alarm
* Inbuilt 4MB flash memory to store position when out of GSM/GPRS coverage
* ARM9 100MHz microcontroller
* Get real time position street name / Google map link via SMS
* Support multiple Geo fence setting and in/out fence alarm
* Support movement alarm / over speed alarm / external power cut off alarm
* Support cut off engine/fuel from remote to immobilize vehicle
* Support door automatically lock/unlock
* Support buzzer horn to alert/remind
* With 850mAh inbuilt rechargeable battery
Tracking Platform


We also provide free tracking platform

GPS tracking platform demo :

Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest

Password: 123
Packing & Delivery
Our Service
* Provide 2 free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /FedEx /TNT /ARAMEX/EMX
Lead time: Samples within 1 day of delivery.bulk production within 5-7days of delivery.
