4G Vehicle GPS Tracker with Inbuilt WiFi Hotspot / Camera Video Monitoring

Place of Origin : China

Brand Name : Topshine/OEM/ODM

Model Number : 4G-WIFI-VT1000

Certification : ce, FCC, RoHS

Packaging Details : Neutral color box(14.5*14*4.5cm) or Neutral white box(15*16*4.5cm)

Supply Ability : 10000 Unit/Units per Month

Price : $115.00/Pieces 1-99 Pieces

Type : GPS Tracker

Placement : PORTABLE

OS : Wince 6

Screen Type : No Screen

Resolution : 1280*720

Function : Other, Remote Control, Distance Warning, Speed Warning, Support OTA, Support OBD II, Two way communications, Harsh Braking/Acceleration Alarm, Real time positioning, Geo Fence, Power cut alarm, Driver ID identification, Fleet management, Support idle alarm

Combination : Other

Connection : 3G/4G Sim Card, Built-in WiFi

Warranty : 2 years

Use : Automotive

Is_Customized : Yes

Camera : Yes

Fuel Sensor : Yes

Temperature Sensor : Yes

Two Way Talking : Yes

OTA : Yes

RFID : Yes

Input Voltage (V DC) : 12 ~ 90

Sos Emergency Alarm : Yes

Power Saving : Support

Port : GuangZhou

Contact Now

Products Description

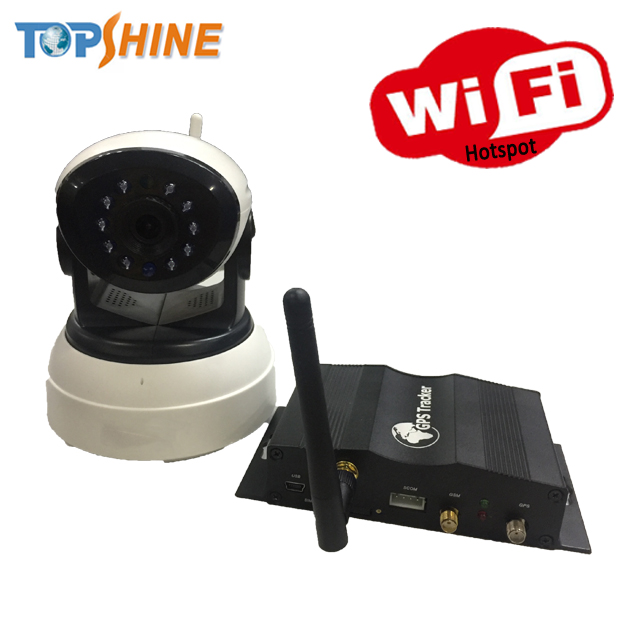

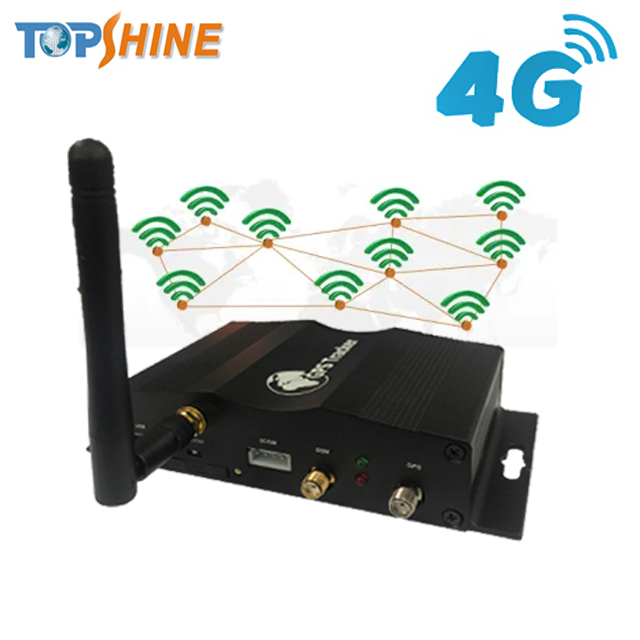

4G Vehicle GPS Tracker with Inbuilt WiFi Hotspot / Camera Video Monitoring
VT1000-4G-WIFI is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Technical Parameters:

Power Supply
+12V - +90V / 1.5A
Backup Battery
850mAh
Dimension
130mm x 68mm x 30mm
Installation Dimension
130mm x 68mm x 30mm
Weight
197g
Operating temperature
-20° to 75° C
Humidity
5% to 95% Non-condensing
Frequency
GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Module
latest GPS SIRF-Star III chipset
GPS Sensitivity
-158Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
20 channel all-in-view tracking
Position Accuracy
10 meters, 2D RMS
Velocity Accuracy
0.1 m/s
Time Accuracy
1 us synchronized to GPS time
Default datum
WGS-84
Reacquisition
0.1 sec., average
Hot start
1 sec., average
Warm start
38 sec., average
Cold start
42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
LED
2 LED lights to show GPS/GSM working status.
Flash Memory
4MB
Interface
5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.
Details Images
4G Vehicle GPS Tracker with Inbuilt WiFi Hotspot / Camera Video Monitoring

Functions of VT1000-4G-WIFI:

* Vehicle WiFi hotspot
* Providing WiFi internet access for passengers
* Support 20+ WiFi camera for real-time video monitoring
* Store video into SD card
* Professional video monitor APP
* Support 1 RS232 camera for taking photo
* Store photo into SD card and tracking platform
* Support limit the vehicle speed within the controllable range (optional)
* GPS tracker + RFID car alarm (optional)
* Support OTA(Update software over the air firmware by SMS)
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
* Support fuel stolen alarm
* Support crash sensor for accident alarm
* Powerful and multifunctional tracker for comprehensiveFleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery
Tracking Platform


We also provide free tracking platform

GPS tracking platform demo :

Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest

Password: 123
Packing & Delivery
Our Service
* Provide 2 free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /FedEx /TNT /ARAMEX/EMX
Lead time: Samples within 1 day of delivery.bulk production within 5-7days of delivery.
